Shear Line
By cutting at a fixed length without stopping the line flow, loss time is eliminated. The wire is fed without securing the basic loop. We can handle everything from high-spec specifications for coil centers to dedicated specifications for manufacturers' final uses. We have rotary shear lines and stop-cut shear lines.
Even for stop cut shear lines, it is possible to add a roll mark prevention function. We have a track record with various types of pilers for loading sheet materials. We can also add trimmers, vinyl coaters, and sheet loaders.
Even for stop cut shear lines, it is possible to add a roll mark prevention function. We have a track record with various types of pilers for loading sheet materials. We can also add trimmers, vinyl coaters, and sheet loaders.
Rotary Shear Line
By synchronizing the shears, the coil material can be cut continuously without stopping.
We have a track record with specifications ranging from 500w to 1300w.
We have a track record with specifications ranging from 500w to 1300w.

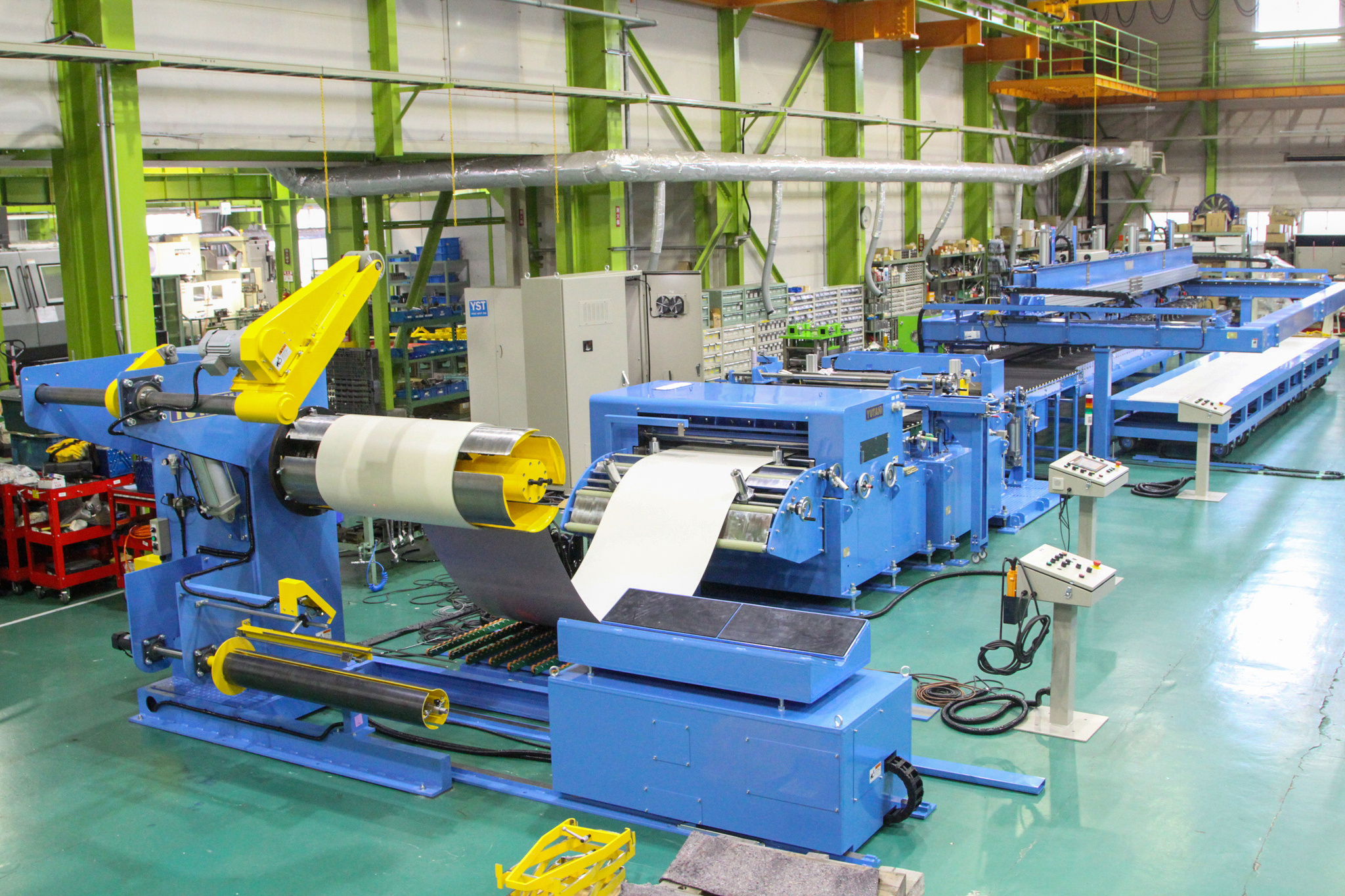

<Example of main specifications (photo on the right)>
Coil material width: 100 to 600 mm
Plate thickness: 0.3 to 2.3 mm
Coil weight: Max 3 tons
Cutting length: 200 to 2500 mm
Line speed: 60m/min
Up-cut rotary shear adopted
Multi-row stacking piler
Stop cut shear line
Even if the material is stopped during cutting, roll marks can be prevented by using special controls.

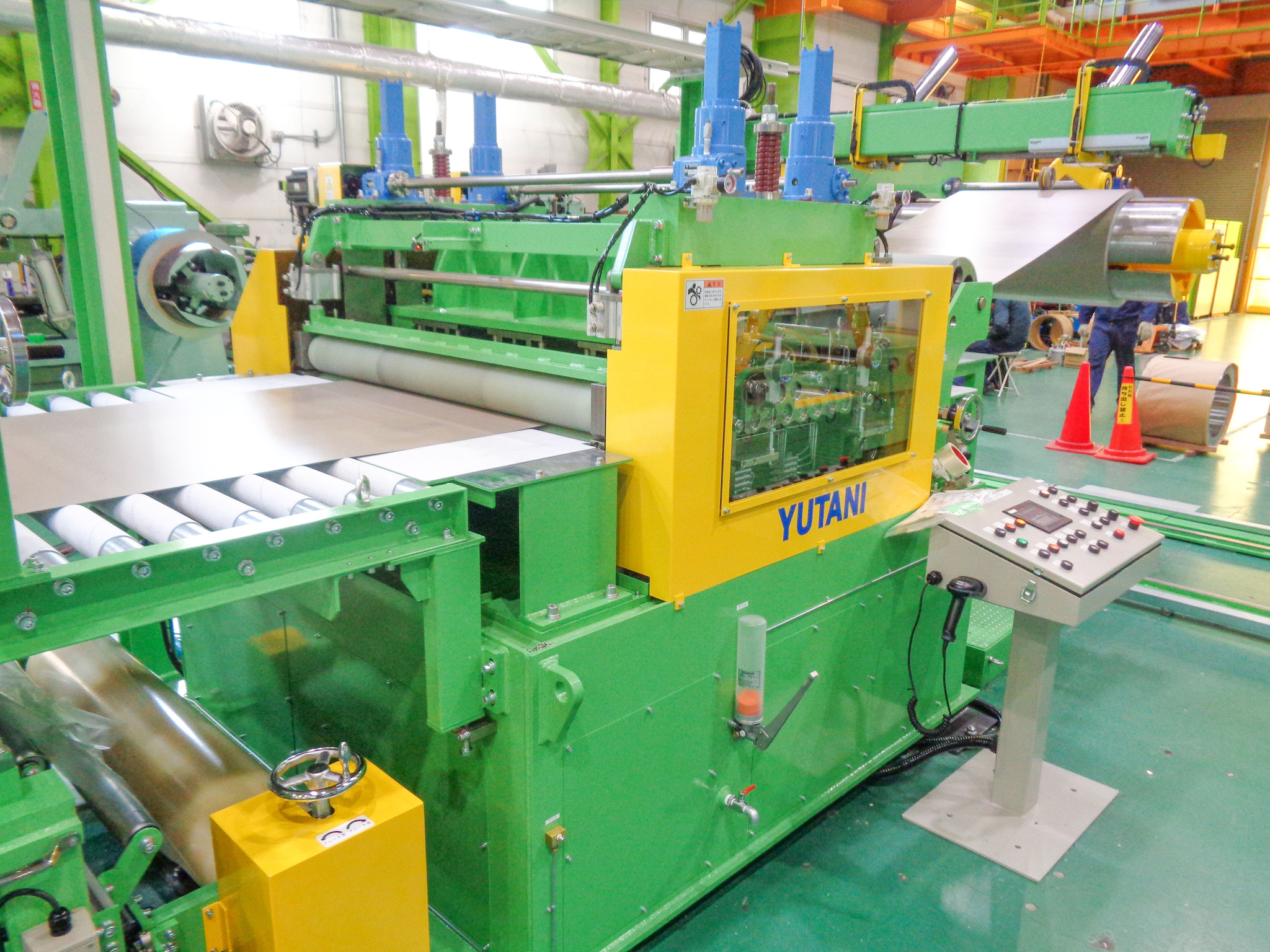

<Example of main specifications (photo on the right)>
Coil material width: 100 to 1250 mm
Plate thickness: 0.3 to 1.6 mm
Coil weight: Max 5 tons
Cutting length: 200 to 3000 mm
Line speed: 30m/min
Trimmer and vinyl coater included
<Example of main specifications (photo on the right)>
Coil material width: 100 to 1250 mm
Plate thickness: 0.3 to 1.6 mm
Coil weight: Max 5 tons
Cutting length: 200 to 3000 mm
Line speed: 30m/min
Trimmer and vinyl coater included
Rollforming Line
This coil line is located upstream of the rollforming machine. It is equipped with the equipment required for the rollforming line, such as shearing, trimming, punching, notching, taping, vinyl coating, etc., and transports materials continuously to the rollforming machine.
We have a wide range of experience, from 150W specifications to 1300W specifications.
Rollforming Line
Even if the material is stopped during cutting, roll marks can be prevented by using special controls.

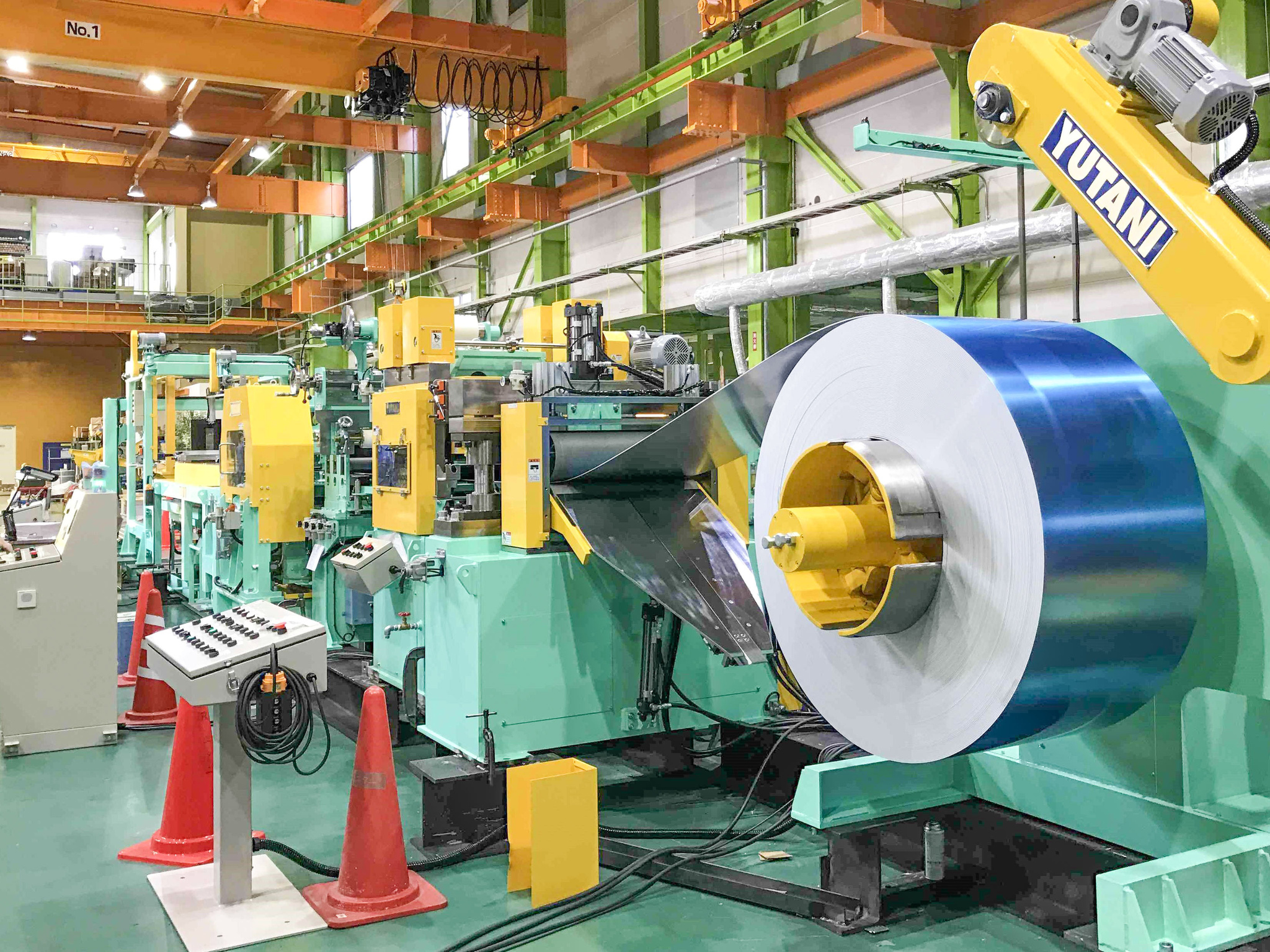

<Example of main specifications (photo on the right)>
Coil material width: 300 to 1250 mm
Plate thickness: 0.5 to 0.8 mm
Coil weight: Max 5 tons
Cutting length: 400 to 6000 mm
Line speed: 20m/min
Puncher, trimmer/slitter, vinyl coater, clamp feeder included
