Uncoiler
The coil material is rotated and fed to the downstream leveller or feeder.
There are cases where it rotates on its own axis to form a down loop or an up loop, and cases where it is pulled by a downstream device to perform braking control or tension control.
There are single-head uncoilers and double-head uncoilers, which can also be combined with coil cars.

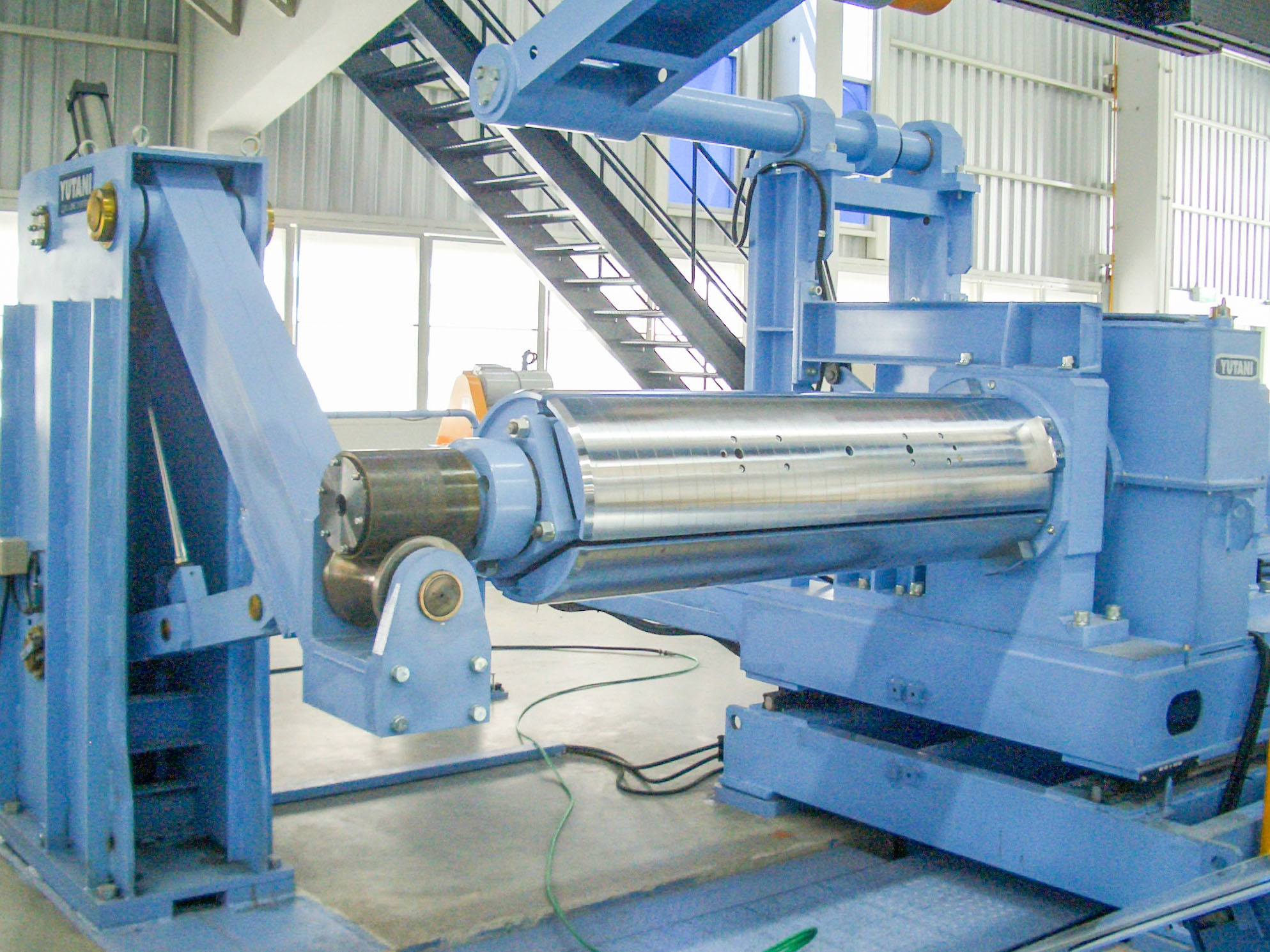

1300 width x 15 ton single uncoiler
We have a track record of large uncoilers up to 20 tons.
The small model starts at 300kg.
We have ample experience with 500kg, 1 ton, 3 ton, 5 ton, 8 ton, 10 ton, etc.
<Main specifications example (photo)>
Maximum width 1300mm
Maximum weight: 15 tons
Coil inner diameter Φ508mm
Maximum coil outer diameter Φ1500mm
Line speed 60m/min, tension control
Hydraulic expansion/contraction, outboard, with coil car
The small model starts at 300kg.
We have ample experience with 500kg, 1 ton, 3 ton, 5 ton, 8 ton, 10 ton, etc.
<Main specifications example (photo)>
Maximum width 1300mm
Maximum weight: 15 tons
Coil inner diameter Φ508mm
Maximum coil outer diameter Φ1500mm
Line speed 60m/min, tension control
Hydraulic expansion/contraction, outboard, with coil car

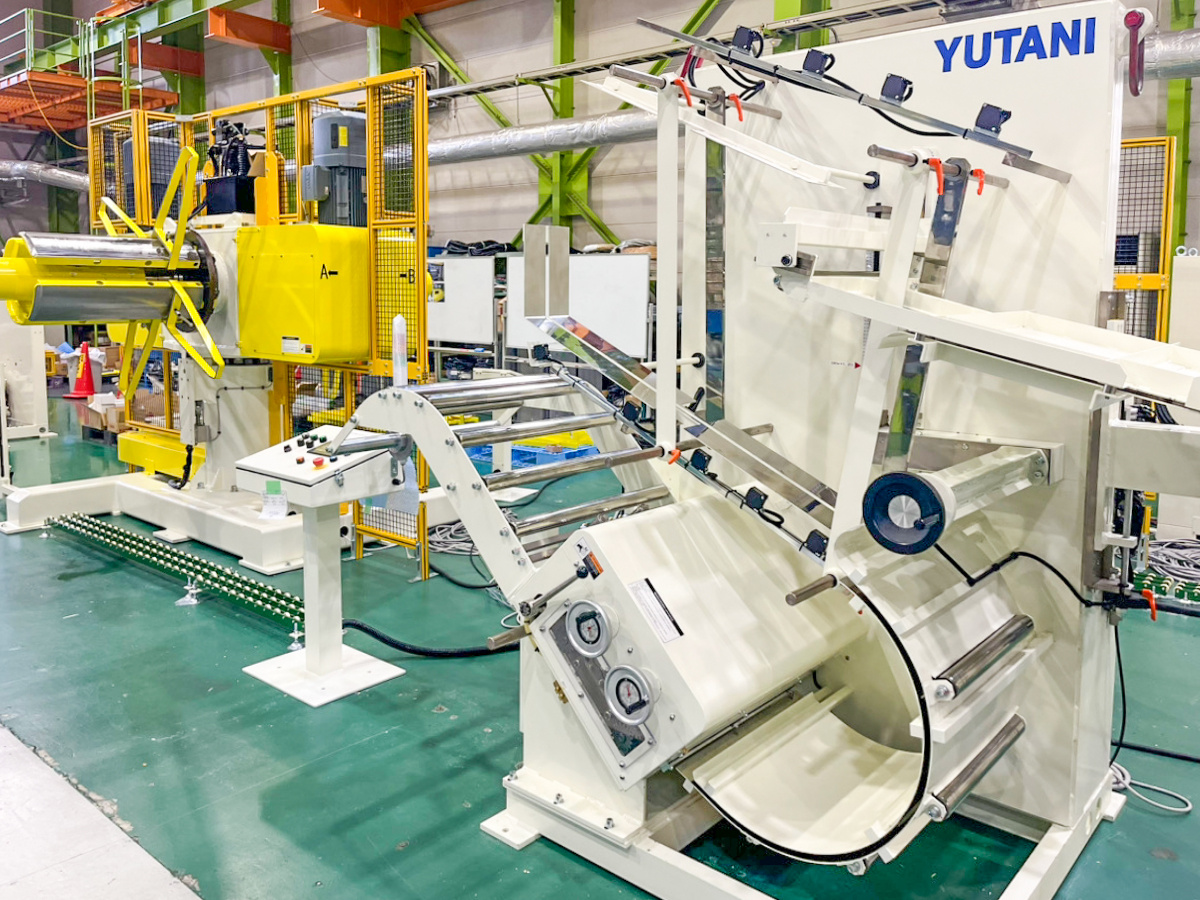

600 width x 3 ton double uncoiler
We also have a wide range of double uncoilers available.
<Example of main specifications (photo)>
Maximum width 600mm
Maximum weight 3 tons x 2
Coil inner diameter φ508mm
Maximum coil outer diameter φ1200mm
Line speed 24m/min, rotation loop control
Hydraulic expansion/contraction, electric rotation, coil car included
<Example of main specifications (photo)>
Maximum width 600mm
Maximum weight 3 tons x 2
Coil inner diameter φ508mm
Maximum coil outer diameter φ1200mm
Line speed 24m/min, rotation loop control
Hydraulic expansion/contraction, electric rotation, coil car included
Leveler
A leveller is a device designed to straighten coil material or sheet material to a flat surface.
We offer a lineup of equipment with different capabilities, including rough levelers and precision levelers, depending on the precision required and the plate thickness.
There are cases where it is configured as a coil line, and cases where it is used alone to straighten blank or sheet materials.
In addition to the work rolls, there are 4Hi and 6Hi types that incorporate backup rolls and intermediate rolls.
There are cases where it is configured as a coil line, and cases where it is used alone to straighten blank or sheet materials.
In addition to the work rolls, there are 4Hi and 6Hi types that incorporate backup rolls and intermediate rolls.

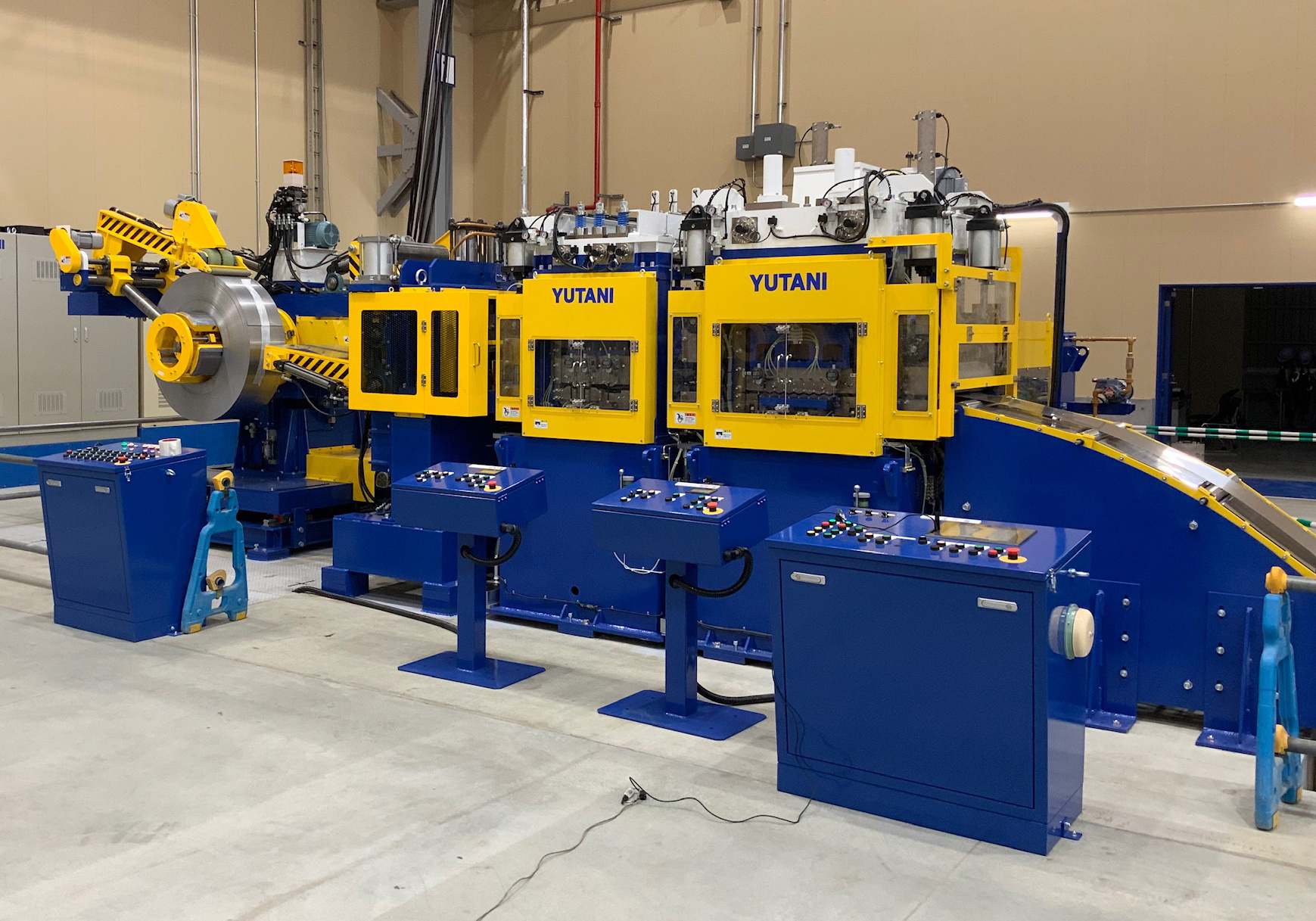

600w x 5t 2 leveler lines
This is a leveller that consists of coil lines.
There are also two-leveler lines consisting of a heavy leveler and a light leveler in one line, as well as anti-roll mark levelers.
Coil material widths ranging from 100mm to 1500mm are available.
<Example of main specifications (photo on the right)>
Maximum plate width: 600 mm
Maximum plate thickness: 5 mm
Capacity: 600w x 3.2t x 600N
There are also two-leveler lines consisting of a heavy leveler and a light leveler in one line, as well as anti-roll mark levelers.
Coil material widths ranging from 100mm to 1500mm are available.
<Example of main specifications (photo on the right)>
Maximum plate width: 600 mm
Maximum plate thickness: 5 mm
Capacity: 600w x 3.2t x 600N

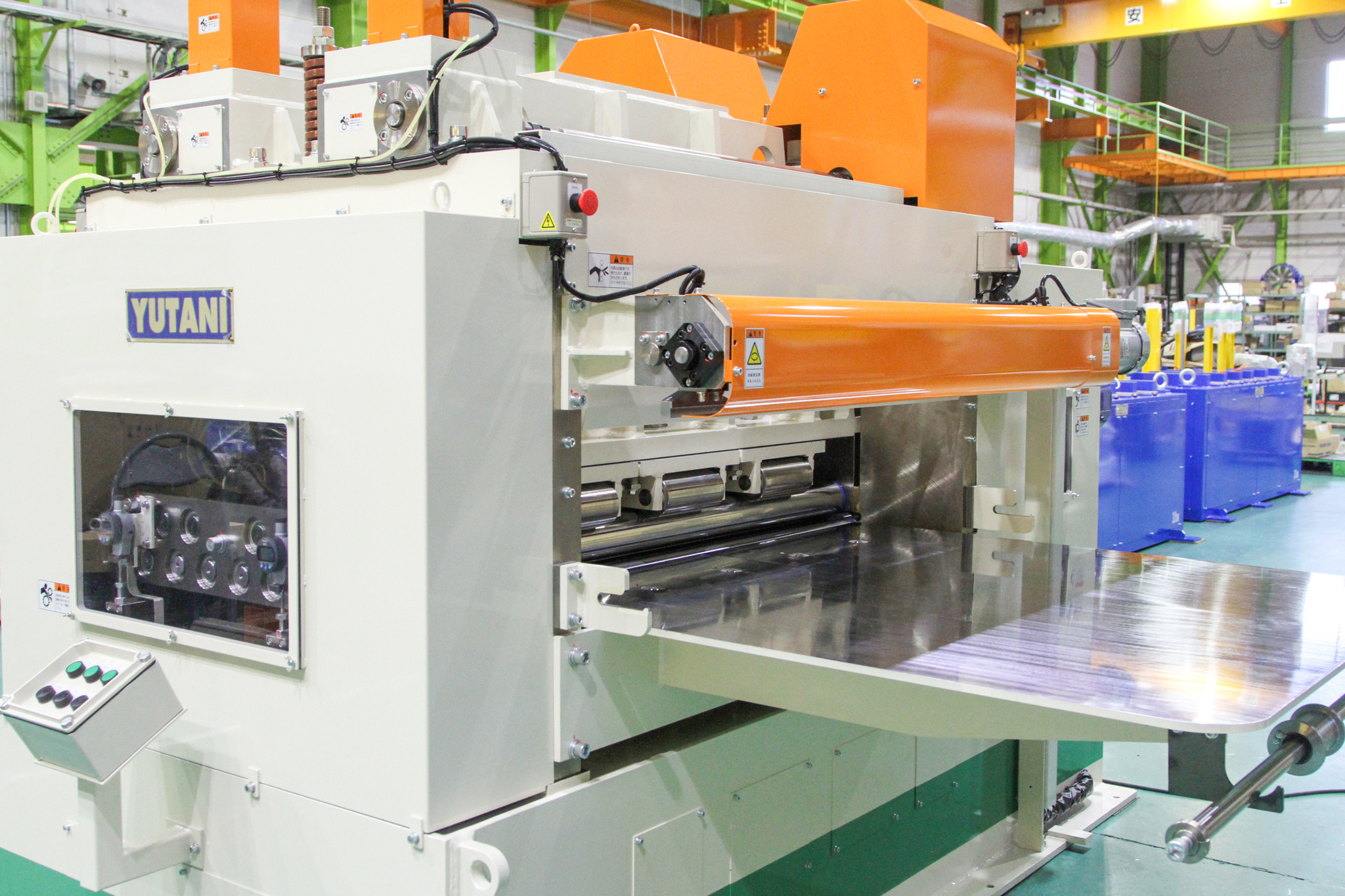

1300w x 3.2t Sheet material leveller
This is a leveller for blank and sheet materials.
There are cases where it is used as a single unit or as an XY leveller with two units.
We have multiple lineups of coil material with widths ranging from 100mm to 1300mm, thicknesses ranging from 0.2 to 5mm, and sizes ranging from small to large.
<Example of main specifications (photo on the right)>
Maximum plate width: 600 mm
Maximum plate thickness: 5 mm
Capacity: 600w x 3.2t x 600N
There are cases where it is used as a single unit or as an XY leveller with two units.
We have multiple lineups of coil material with widths ranging from 100mm to 1300mm, thicknesses ranging from 0.2 to 5mm, and sizes ranging from small to large.
<Example of main specifications (photo on the right)>
Maximum plate width: 600 mm
Maximum plate thickness: 5 mm
Capacity: 600w x 3.2t x 600N
NC leveler feeder
This is an integrated device that straightens the material and feeds it at a fixed length at a fixed speed. It is space-saving and can be selected according to the coil material and line speed. In addition to a wide range of models in the lineup, we also support customization according to customer specifications.
There are bottom-out type FD, top-out type FG, and up-loop type FU, etc. Each has a track record ranging from Max 150 width specifications to Max 1500w specifications.
There are bottom-out type FD, top-out type FG, and up-loop type FU, etc. Each has a track record ranging from Max 150 width specifications to Max 1500w specifications.

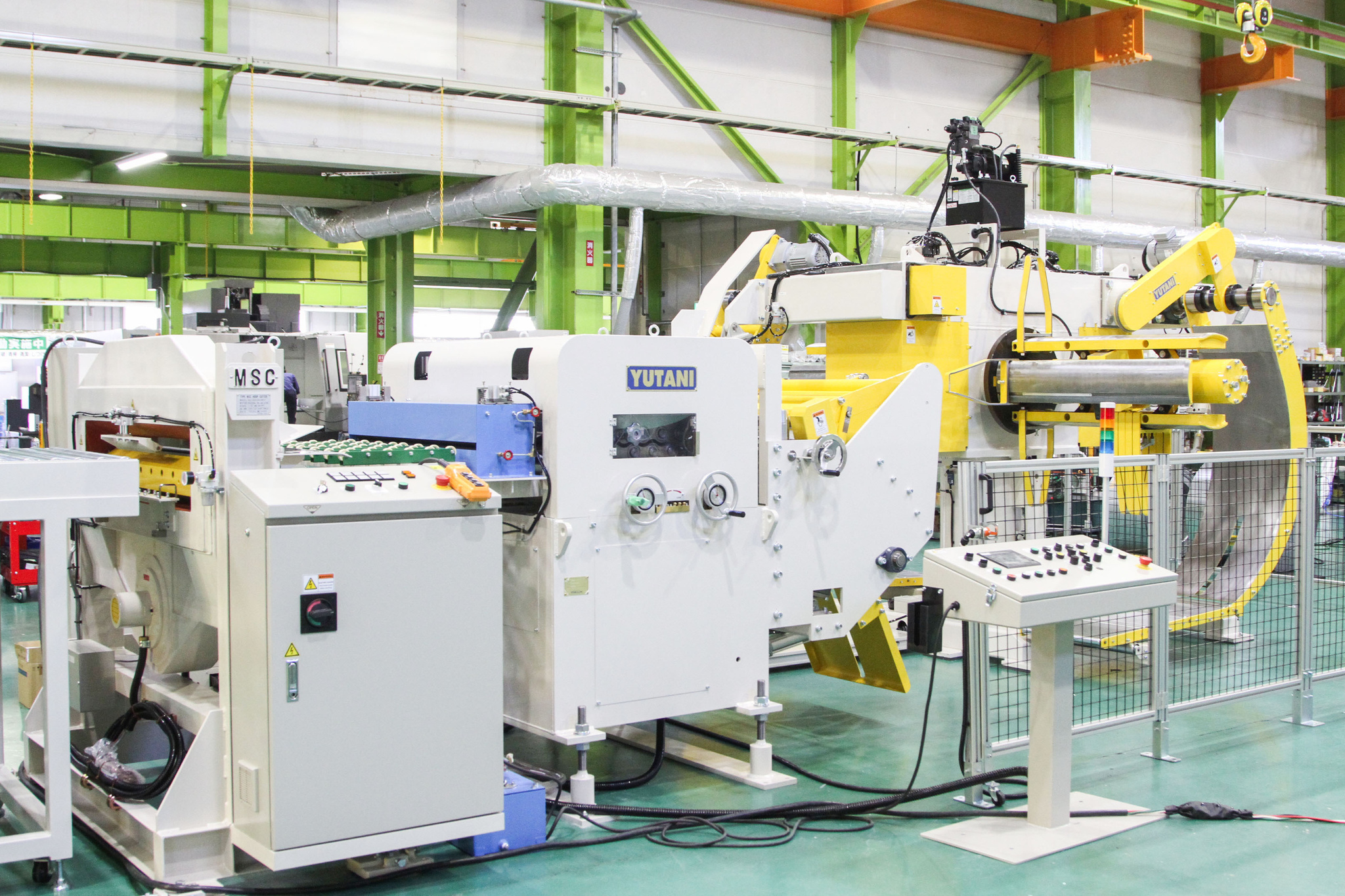

FD3-800W (Double Uncoiler)
The downward type FD is available in the FD1 to FD7 series to suit the orthodontic capabilities.
Both are compatible with the double uncoiler.
<Example of main specifications (photo on the right)>
Material width: 100 to 800 mm
Material thickness: 0.6 to 2.3t
Capacity: 800w x 1.6t x 400N
Maximum coil weight 3 tons x 2
Line speed: 22m/min
Both are compatible with the double uncoiler.
<Example of main specifications (photo on the right)>
Material width: 100 to 800 mm
Material thickness: 0.6 to 2.3t
Capacity: 800w x 1.6t x 400N
Maximum coil weight 3 tons x 2
Line speed: 22m/min

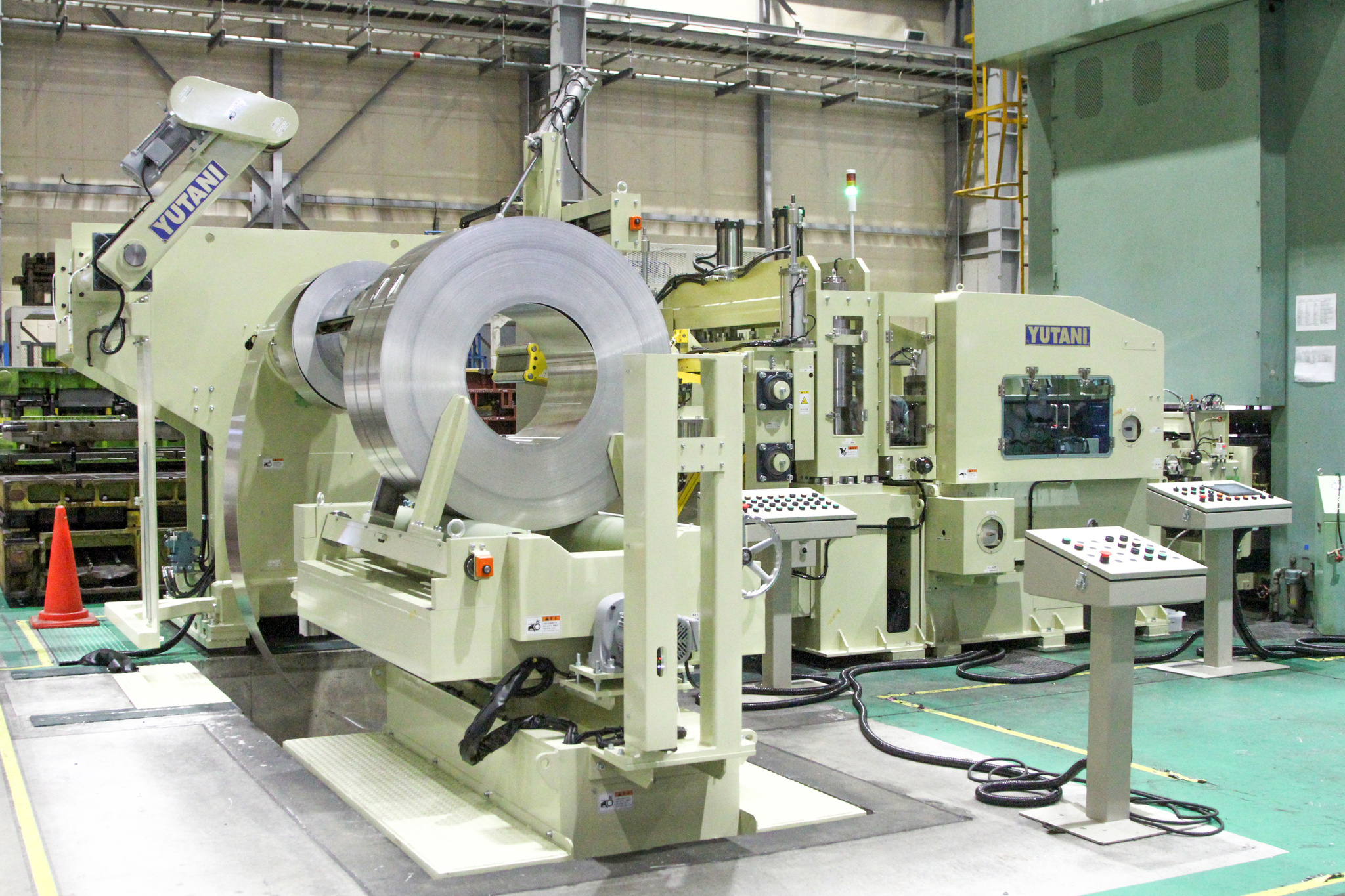

FD6-1300CA (coil car)
Equipped with automatic loading and insertion function from coil car.
It is also possible to add coil storage.
<Example of main specifications (photo on the right)>
Material width: 200 to 1300 mm
Material thickness: 0.5 to 5.0t
Capacity: 300w x 5.0t x 600N
Coil weight: 10 tons
Line speed: 22m/min
It is also possible to add coil storage.
<Example of main specifications (photo on the right)>
Material width: 200 to 1300 mm
Material thickness: 0.5 to 5.0t
Capacity: 300w x 5.0t x 600N
Coil weight: 10 tons
Line speed: 22m/min

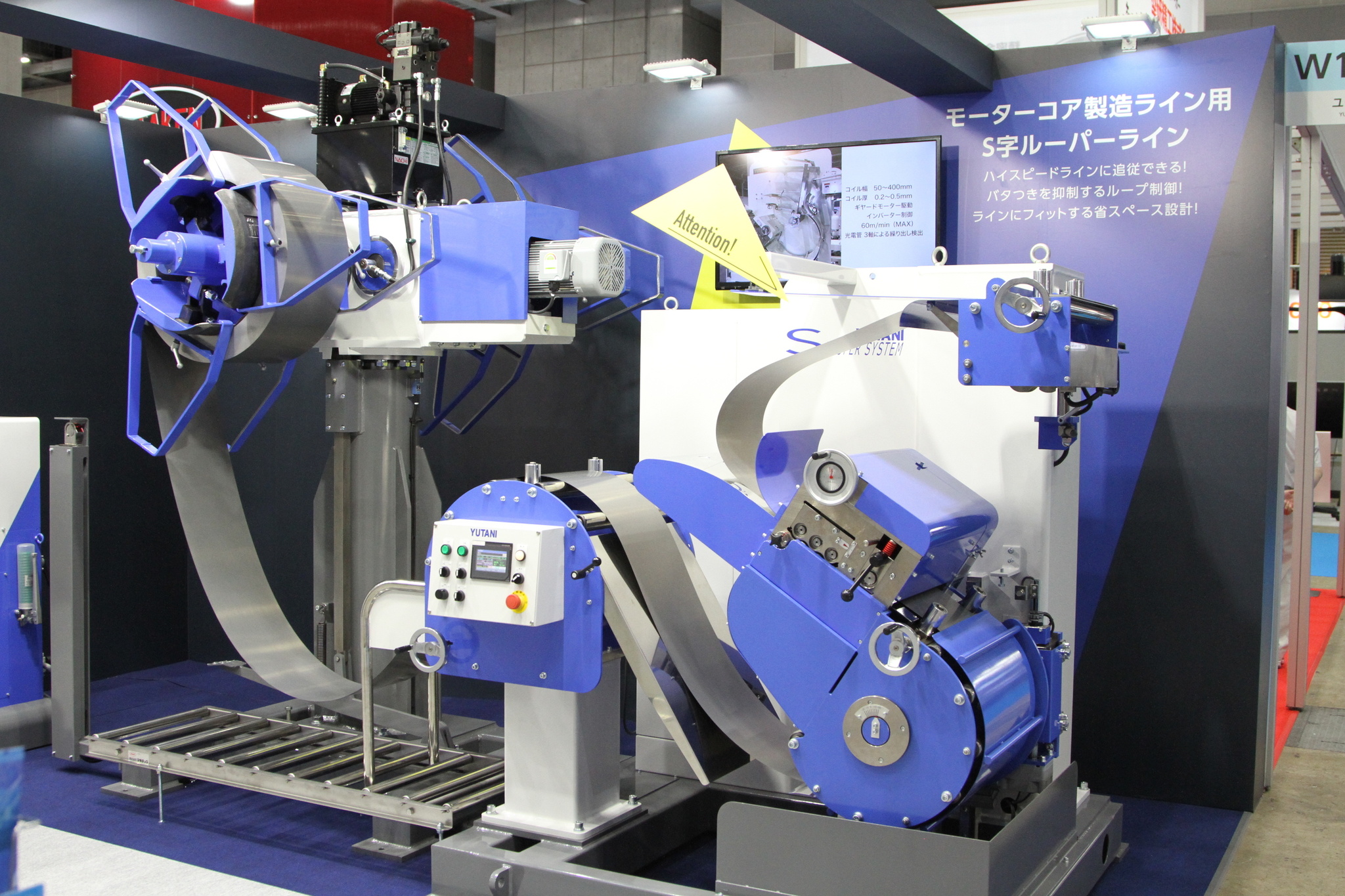

S-Loop
The coil material is looped in an S-shape to secure a buffer for feeding the material at high speed at a constant length.
It is widely used in motor core production lines because it is ideal for lines that feed thin plates such as electromagnetic steel sheets at high speed.
The line has a proven track record of 150w to 700w and is often combined with a double uncoiler.
The line speed is often 40 to 60 m/min, but we have also seen results with a maximum of 100 m/min.
It is widely used in motor core production lines because it is ideal for lines that feed thin plates such as electromagnetic steel sheets at high speed.
The line has a proven track record of 150w to 700w and is often combined with a double uncoiler.
The line speed is often 40 to 60 m/min, but we have also seen results with a maximum of 100 m/min.
SL-200W
An adjustment mechanism can be attached to form an optimal loop according to the plate thickness.
<Example of main specifications (photo on the right)>
Material width: 40 to 200 mm
Material thickness: 025 to 0.5t
Maximum coil weight 2 tons x 2
Line speed: 50m/min
<Example of main specifications (photo on the right)>
Material width: 40 to 200 mm
Material thickness: 025 to 0.5t
Maximum coil weight 2 tons x 2
Line speed: 50m/min
SL-600W
It is also possible to motorize the adjustment mechanism to form an optimal loop according to the plate thickness.
<Example of main specifications (photo on the right)>
Material width: 80 to 600 mm
Material thickness: 025 to 0.5t
Maximum coil weight 3 tons x 2
Line speed: 80m/min
<Example of main specifications (photo on the right)>
Material width: 80 to 600 mm
Material thickness: 025 to 0.5t
Maximum coil weight 3 tons x 2
Line speed: 80m/min
